TDR – Step Responses

Take advantage of both TDR and TDT (Time Domain Transmissometry) for effective signal analysis. Our multi-channel TDR systems support a broad range of applications with precision and flexibility.

Time domain reflectometer DTDR-65 and accessories to be used for step response measurements. Time domain reflectometer DTDR-65 and accessories to be used for step response measurements.

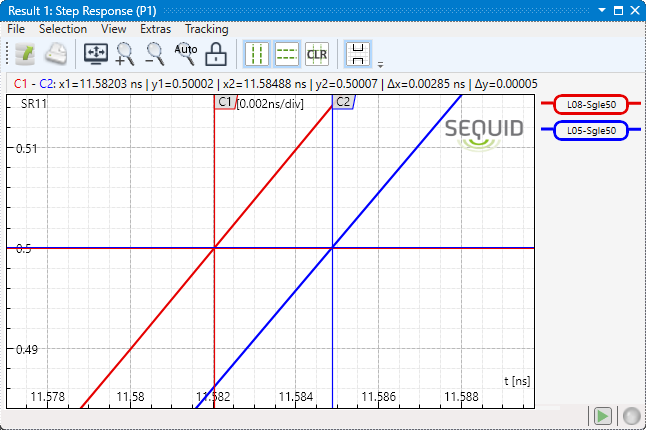

Cable skew measurement using SeunisPro TDR system. Cable skew measurement using SeunisPro TDR system.

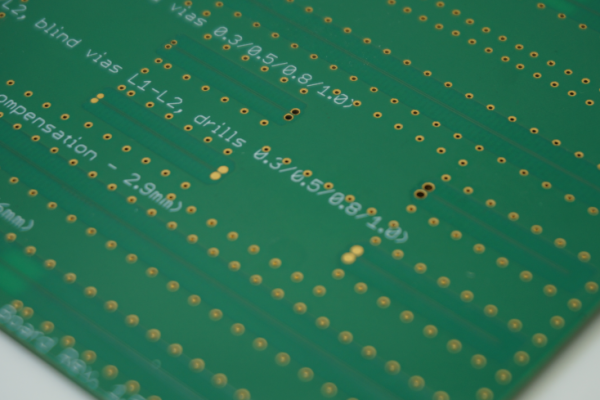

Demonstration PCB showing transmission lines with blind and thru vias. Demonstration PCB showing transmission lines with blind and thru vias.

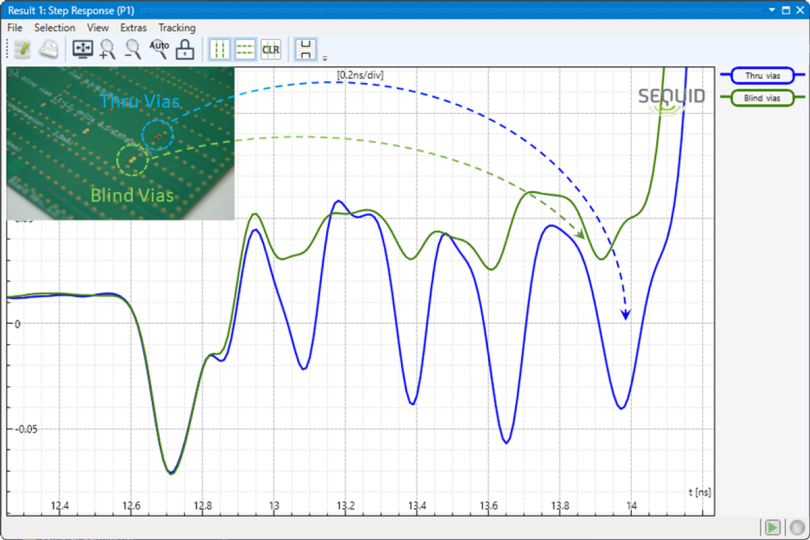

Step responses of transmission lines with blind/thru vias visualized in SeunisPro Step responses of transmission lines with blind/thru vias visualized in SeunisPro

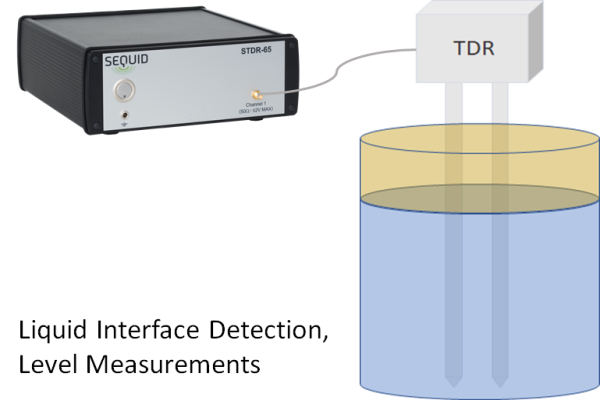

TDR step response used in multi-level measurements in oil tank with water layer. TDR step response used in multi-level measurements in oil tank with water layer.

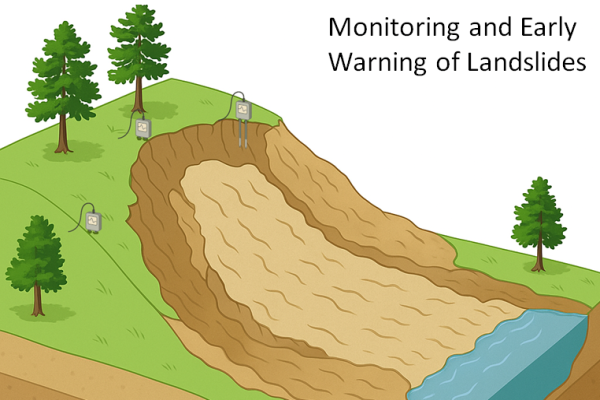

TDR step response measurement for early warning of landslide. TDR step response measurement for early warning of landslide.

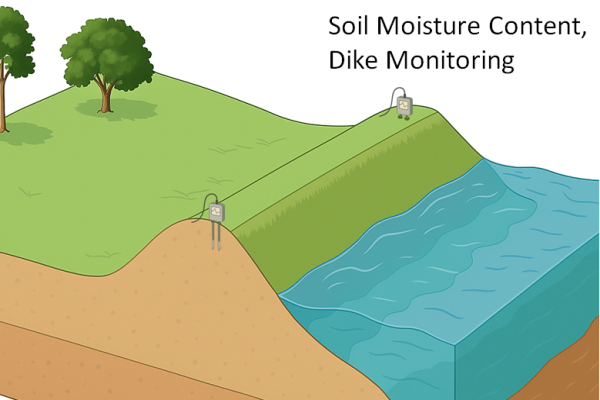

TDR step responses can used for dike monitoring systems. TDR step responses can used for dike monitoring systems.

What are TDR/TDT step responses used for?

  • Detect discontinuities — down to millimeter resolution in some systems
  • Identify open circuits (disconnections) and short circuits
  • Assess signal integrity across connectors, traces, and interposers
  • Evaluate PCB vias — signal transitions and impedance mismatches
  • Measure signal attenuation along transmission paths
  • Compare DUT behavior before and after testing
  • Analyze crosstalk between adjacent lines
  • Measure trace length and timing skew
  • Characterize the dielectric properties of materials

Which multi-channel TDR is best suited for your application?
