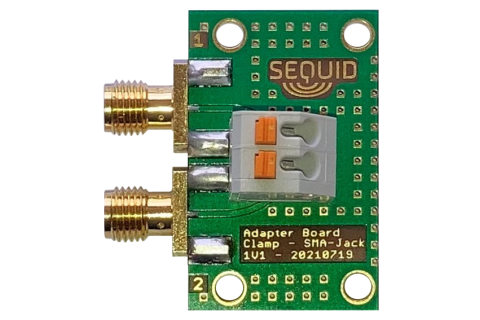

AB-SMA-CL

Clamp to SMA Adapter.

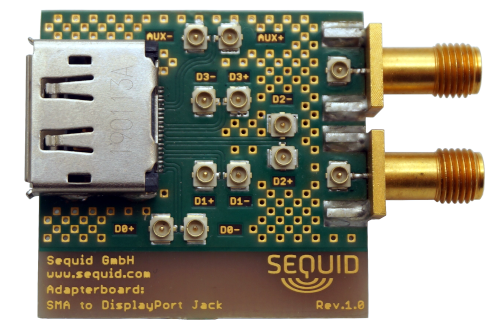

AB-SMA-DP-J

Display-Port Jack to SMA Adapter.
SMA jacks can be connected to the desired data lines using U.FL cables. The adapter is supplied with two 5 cm long U.FL cables.

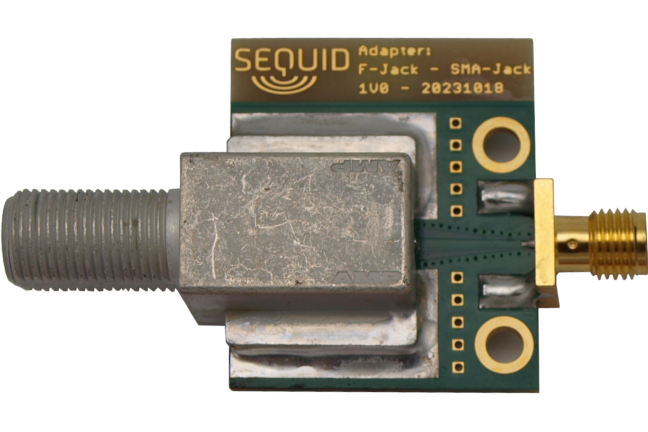

AB-SMA-F-J

F-Jack to SMA Adapter.
SMA jacks connected to coaxial F jack

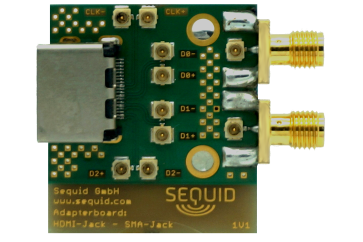

AB-SMA-HDMI-J

HDMI Jack to SMA Adapter.
SMA jacks can be connected to the desired data lines using U.FL cables. The adapter is supplied with two 5 cm long U.FL cables.

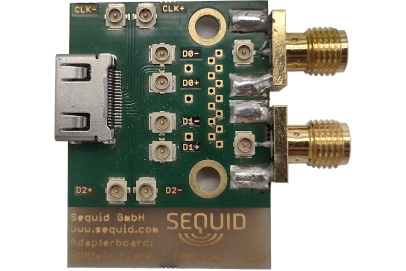

AB-SMA-HDMIM-J

Mini-HDMI Jack to SMA Adapter.
SMA jacks can be connected to the desired data lines using U.FL cables. The adapter is supplied with two 5 cm long U.FL cables.

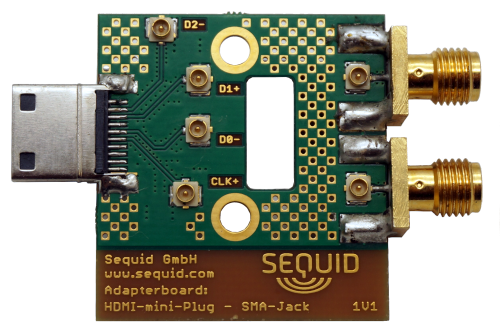

AB-SMA-HDMIM-P

Mini-HDMI Plug to SMA Adapter.
SMA jacks can be connected to the desired data lines using U.FL cables. The adapter is supplied with two 5 cm long U.FL cables.

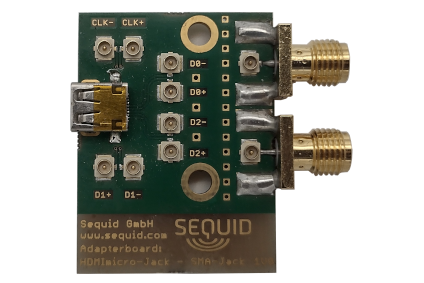

AB-SMA-HDMIU-J

Micro-HDMI Jack to SMA Adapter.
SMA jacks can be connected to the desired data lines using U.FL cables. The adapter is supplied with two 5 cm long U.FL cables.

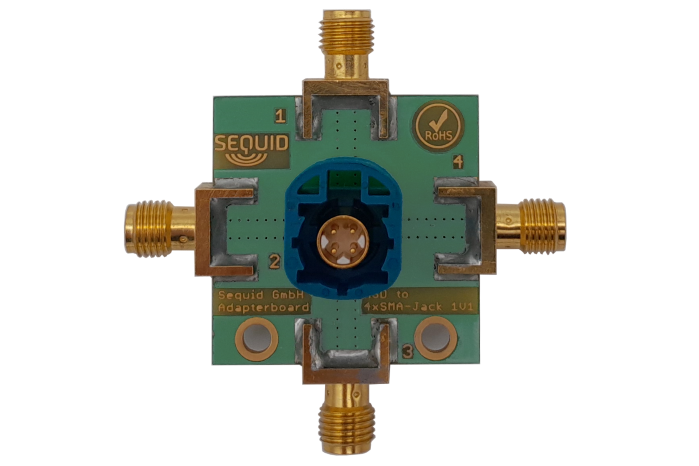

AB-SMA-HSD

HSD plug to SMA jack adapter.

Typical values:

• Differential Impedance 100Ω±10%
• Intra-Pair-Skew of signal lines 1/3 & 2/4 < 5ps
• Crosstalk SDD21 & SDD12 < -35dB @ DC to 2GHz
• Return loss > 20dB @ DC to 2 GHz
• Insertion loss < 0.3dB @ DC to 2 GHz

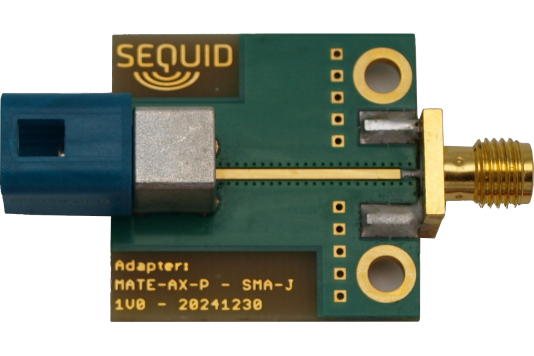

AB-SMA-MATEAX-P

Mate-AX-Plug to SMA Adapter.
SMA jacks connected to Mate-AX-Plug

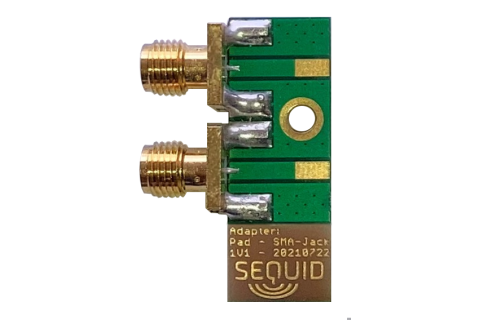

AB-SMA-PAD

Solderpad to SMA Adapter.

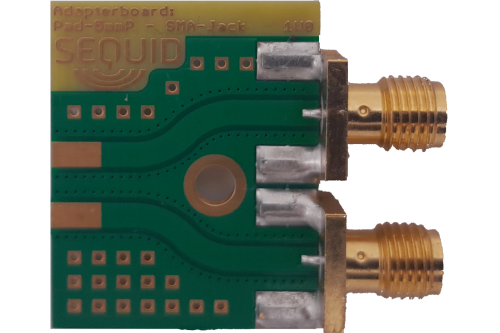

AB-SMA-PAD-5mmP

Solderpad to SMA Adapter with 5mm pitch (center-to-center). Each line features a 2mm wide 50Ohm-coplanar structure, allowing the soldering of probe tips with a pitch from 3mm to 7mm.

AB-SMA-RJ45-J

RJ45 Jack to SMA Adapter.
SMA jacks can be connected to the desired data lines using U.FL cables. The adapter is supplied with two 5 cm long U.FL cables.

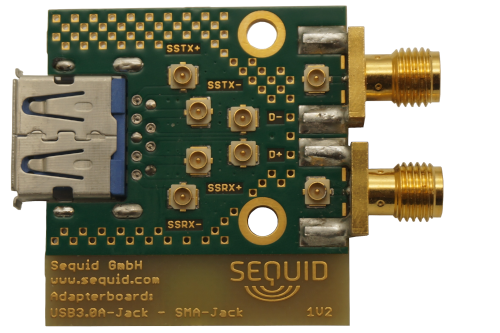

AB-SMA-USB30-J

USB-3.0 Jack to SMA Adapter.
SMA jacks can be connected to the desired data lines using U.FL cables. The adapter is supplied with two 5 cm long U.FL cables.

AB-SMA-USB30-P

USB-3.0 Plug to SMA Adapter.
SMA jacks can be connected to the desired data lines using U.FL cables. The adapter is supplied with two 5 cm long U.FL cables.

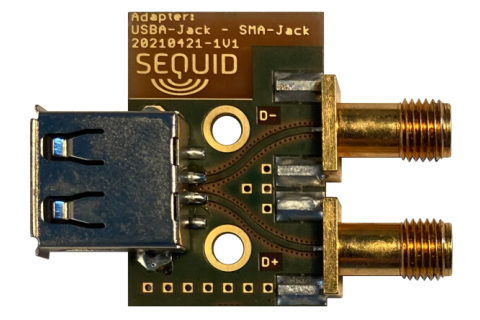

AB-SMA-USBA-J

USB-A Jack to SMA Adapter.
SMA jacks connected to USB data lines.

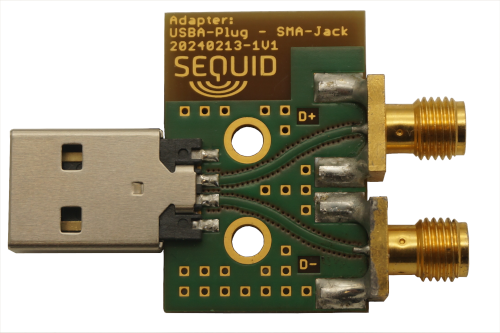

AB-SMA-USBA-P

USB-A Plug to SMA Adapter.
SMA jacks connected to USB data lines.

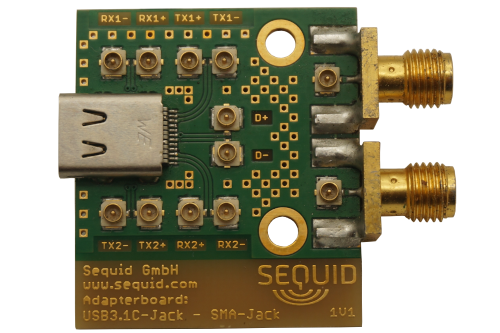

AB-SMA-USBC-J

USB-3.1 Jack to SMA Adapter.
SMA jacks can be connected to the desired data lines using U.FL cables. The adapter is supplied with two 5 cm long U.FL cables.

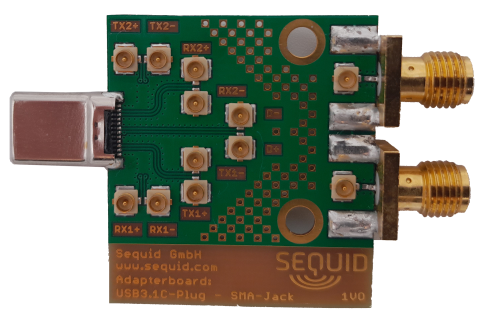

AB-SMA-USBC-P

USB-3.1 Plug to SMA Adapter.
SMA jacks can be connected to the desired data lines using U.FL cables. The adapter is supplied with two 5 cm long U.FL cables.

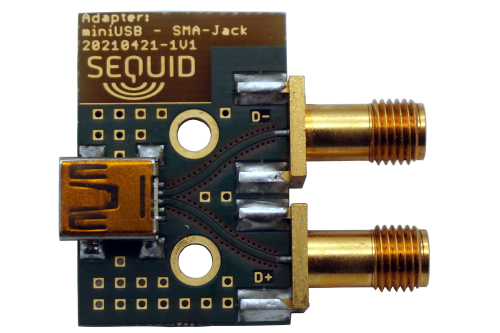

AB-SMA-USBM-J

Mini-USB Jack to SMA Adapter.
SMA jacks connected to USB data lines.

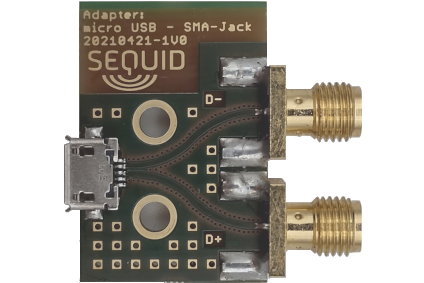

AB-SMA-USBU-J

Micro-USB Jack to SMA Adapter.
SMA jacks connected to USB data lines.

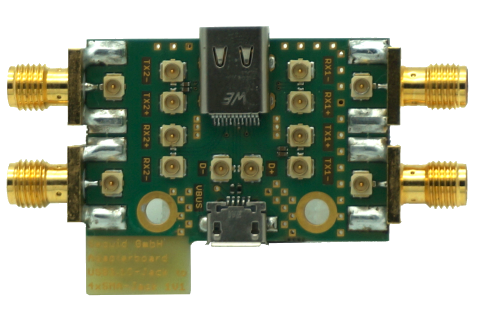

AB-SMA4-USBC-J-PWR

USB-C Jack to SMA Adapter.
SMA jacks can be connected to desired data lines via U.FL cables. Micro USB 2.0 connector can be used to supply 5V to USB-C connector, D+ & D- contacts can be connected to those of USB-C connector via 0Ohm resistors. All TX paths are equipped with 10nF caps. Adapter comes with four 5cm U.FL cables.

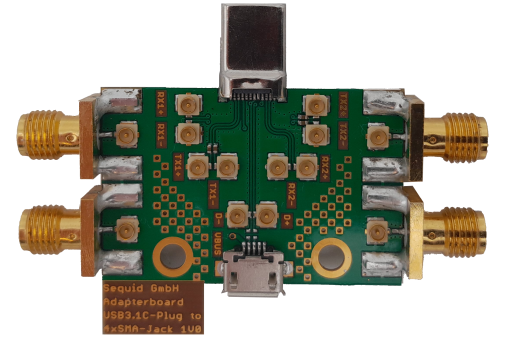

AB-SMA4-USBC-P-PWR

USB-C Plug to SMA Adapter.
SMA jacks can be connected to desired data lines via U.FL cables. Micro USB 2.0 connector can be used to supply 5V to USB-C connector, D+ & D- contacts can be connected to those of USB-C connector via 0Ohm resistors. All TX paths are equipped with 10nF caps. Adapter comes with four 5cm U.FL cables.

AB-USB30-PJ

USB-3.0 Plug to Jack Adapter featuring a wave impedance of 90Ω and various solder resist openings for attaching probe (e.g. P77STFLXB fom Tektronix) to SSRX, D & SSTX.
