Accessories: TDR probes, SMA cables, ESD protection, Cal-Kits

ESD protection module for DTDR-65, fully integrated into the device

ESD protection module for STDR-65, fully integrated into the device

ESD protection module for DTDR-800, fully integrated into the device

Set of two 8 inches long 086 cables phase matched to ±2ps skew.

Differential TDR Probe (high precision, 0.5 - 5.0mm variable pitch)

Set of eight 24 inches long 086 cables, bundled to 4 color-coded pairs phase matched to ±2ps skew. Mainly intended to connect Sequids multiplexers to devices under test.

Single-ended TDR Probe (high precision, 1.0, 1.27, 1.65, 2.0, 2.5mm variable pitch), incl. 5x Ground Pins

Set of four 24 inches long 086 cables, not phased matched. Mainly intended to connect Sequids QTDNA-300 to devices under test.

Differential TDR Probe (industrial, 2.0 - 5.1mm fixed pitch, default: 2.54mm)

Single-ended TDR Probe (industrial, 1.0 - 5.0 mm pitch, fixed pitch, default: 2.54mm)

Precision Phase Matched SMA Cables (50Ohm±1Ohm, <1ps skew, 750mm)

Precision Phase Matched 3.5mm cables (male, 50Ohm±1Ohm, <1ps skew, 500mm)

Precision SMA cable (male, 50±1Ohm, 823mm), same electrical length as SPMC-P. With rotational adapter for convenient measurements with single-ended TDR probes.

Precision SMA(m)-SMA(m) Cable (50Ohm±2Ohm), 750mm

Precision SMA(m)-N(m) Cable (50Ohm±2Ohm), 750mm

RF-Calibration Kit OSL, RPC-3.5, 3x female (compatible to SMA & RPC-2.92)

RF-Calibration Kit OSLT (RPC-3.5, compatible to SMA & RPC-2.92), female

RF OSL Calibration Kit Economy, 3x female, SMA (compatible with RPC3.5 & RPC-2.92)

RF OSLT Calibration Kit Economy, 4x female, SMA (compatible with RPC3.5 & RPC-2.92)

RF Thru calibration standard, female-female, SMA (compatible to RPC-3.5 & RPC-2.92)

RF-Calibration Kit, 3x female, RPC-3.5 (compatible to SMA & RPC-2.92)

RF Thru calibration standard, female-female, RPC-3.5 (compatible to SMA & RPC-2.92)

Compact High Quality Storage Case (420 x 300 x 135mm), allows ESD-save storage and transportation

USB foot switch (triple) for STDR/DTDR

Sequid battery pack, 3 hours operating time without external power supply

Sequid precision motion sensor, deactivation of ESD protection module during probing

USB-Dongle for Viewing, Editing & Exporting of Sequid Measurement Files without connecting a device

Coaxial probe with RPC-3.5 connector, for permittivity measurements, integrated PT100 sensor

Coaxial probe with RPC-3.5 connector, for permittivity measurements

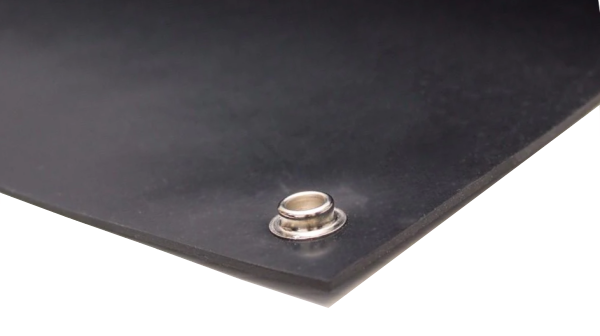

ESD protection pad, 700mmx500mm, 4 grounding snaps (10mm)

Replacement Ground Pins for Single-Ended TDR-Probe SSTP-P, min. order quantity 5pcs

Pair of replacement tips for TDR probe SDTP-P

Pair of replacement tips for TDR probes SSTP-E & SDTP-E
