The Sequid STDR-65 is optimized for an extremely stable operation. Due to sophisticated time base generation techniques in combination with proprietary correction algorithms the STDR-65 features a vertical and horizontal stability, which is usually reserved for the high-price segment. Furthermore, the STDR-65 grants this stability over a wide temperature range without the need for recurring calibrations, making it absolutely unique.

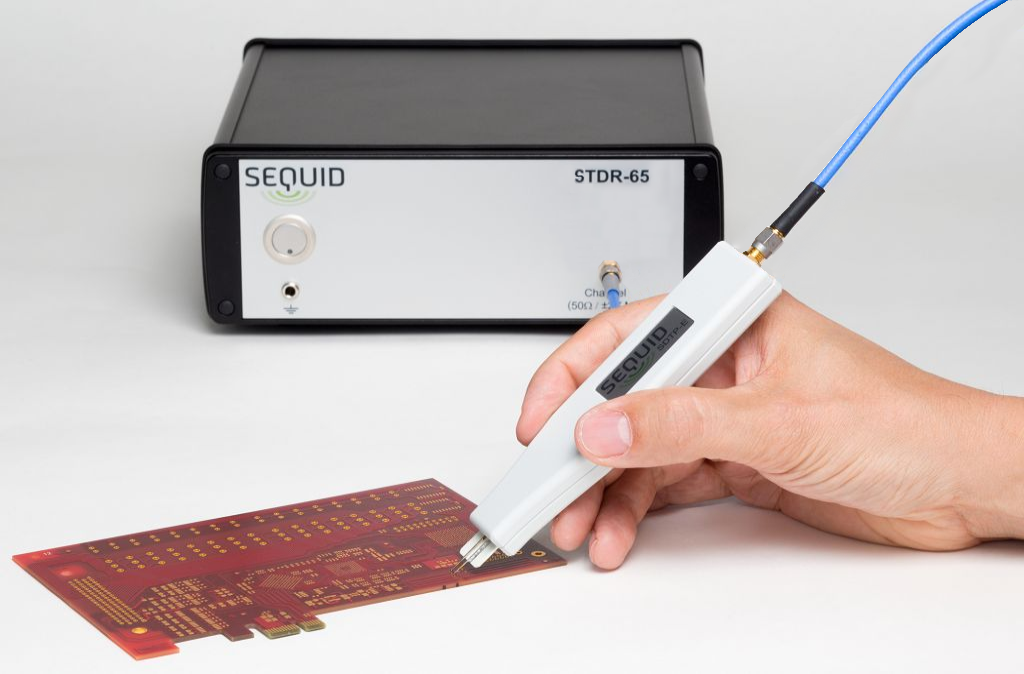

Measure wave impedance profiles of single-ended transmission lines, connectors and cables. Gather a deeper insight in your systems and use this feature for pre-compliance testing, optimizing signal integrity (SI) and for quality assessment. It is also perfect for series impedance test coupon measurements.

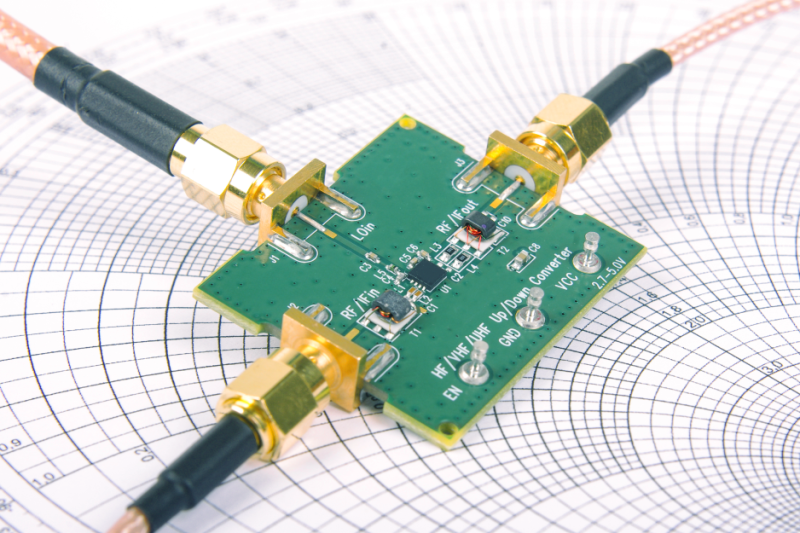

Measure the return loss S₁₁ in the frequency range up to 10GHz — on PCBs, in cables and connectors.
Measuring the frequency dependent complex permittivity of materials by means of an open-ended coaxial line sensor is an established method in the scientific community.
Sequid's novel dual-line technology facilitates identifying the dielectric constant of your substrates in frequency range up to 5GHz.
The STDR-65 is a cost-effective and reliable solution for quality control in series production, equipped with a fully integrated ESD protection unit.
Wave impedance measurements help optimize electrical connections by ensuring impedance matching, minimizing signal reflections and maximizing power transfer.
The detection & localization of cable faults is a very traditional application of TDRs (also known as cable radar).
Evaluating step responses can be a very helpful tool, particularly useful for high-speed systems analysis. TDR measurements are also used for measuring diverse environmental parameters.
For more information, please visit our Applications section or contact our support team.
Single-ended TDR Probe (high precision, 1.0, 1.27, 1.65, 2.0, 2.5mm variable pitch), incl. 5x Ground Pins
Price: 645.00€
Single-ended TDR Probe (industrial, 1.0 - 5.0 mm pitch, fixed pitch, default: 2.54mm)
Price: 395.00€
Coaxial probe with RPC-3.5 connector, for permittivity measurements
Price upon request.
Precision SMA cable (male, 50±1Ohm, 823mm), same electrical length as SPMC-P. With rotational adapter for convenient measurements with single-ended TDR probes.
Price: 420.00€
Precision SMA(m)-SMA(m) Cable (50Ohm±2Ohm), 750mm
Price: 250.00€
Precision SMA(m)-N(m) Cable (50Ohm±2Ohm), 750mm
Price: 250.00€
RF-Calibration Kit OSL, RPC-3.5, 3x female (compatible to SMA & RPC-2.92)
Price upon request.
RF OSL Calibration Kit Economy, 3x female, SMA (compatible with RPC3.5 & RPC-2.92)
Price: 650.00€
RF-Calibration Kit, 3x female, RPC-3.5 (compatible to SMA & RPC-2.92)
Price: 2800.00€
There is a wide range of SMA adapters available, please visit our SMA adapter page for more information.
Price upon request.
Sequid recently started a new differential RF multiplexer series. The devices with a bandwidth from DC up to 10 GHz are designed for both laboratory use and production processes and are ideally suited for measuring cables in the automotive sector. The multiplexers are equipped with coaxial connectors and can be easily combined with any RF measuring devices. Visit our RF multiplexer page for further information.
Price upon request.
We offer additional accessories such as cases, foot switches, ESD protection and much more. Please visit our Accessories page for more detailed information.
Price upon request.
| Value | Comment | |
| Hardware Features | ||
|---|---|---|
| Step generators | 1 | |
| Sampling modules | 1 | Real thru |
| ESD-protection | Yes | Optional |
| Battery | Yes | Optional |
| Portable | Yes | |
| Horizontal | ||
| Rise time | 35ps 55ps |
20%-80% 10%-90% |
| Analog bandwidth | ≈10GHz | |
| Spatial resolution | <3mm | |
| Jitter | <500fs | Extremely low |
| Channel-to-channel skew | n.a. | |
| Vertical | ||
| Step amplitude | 150mV | @50Ω |
| Noise | <500uV | Vrms |
| True differential | n.a. | |
| Measurements | ||
| Wave impedance | Single-ended | |
| Step responses | Single-ended | |
| S-Parameter | Single-ended (RL) | |
| Dielectric properties | Dielectric constant, complex permittivity |
|
| Calibration | ||
| Method | OSL | Open, short, load |
| Wizard guided | Yes | |
| Interface | ||
| PC interface | USB | |
| Mechanical | ||
| Dimensions | 242×210×82.5mm³ | With connectors |
| Weight | 2500g | |
| Environment | ||
| High temperature stability | 0°C to 40°C | |
| Working environment | Lab- & production | |
| External components | No | |
